Drone Test Bench
FFT GYRO

Model

G3.5
XYZ Rotation Order

G4.0
ZYX Rotation Order

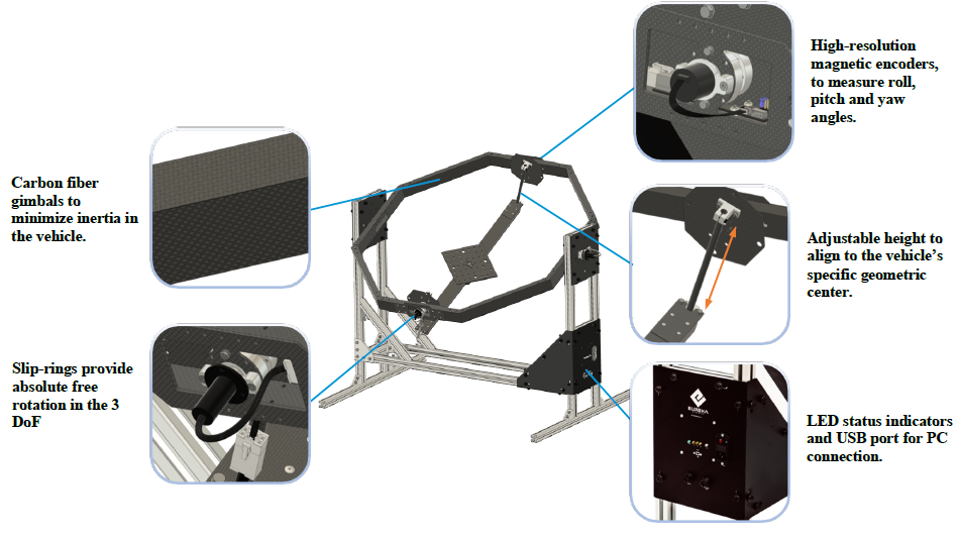

Frame Size

250–2000 mm (standard), custom available

Encoder

None

Avairable (PRO)
High-resolution measurement

Material

Alminium
Standard

Carbon
Lightweight

Moter Option

None

Available (MK2.5 or MK6.0)
Rotation axis actuation capable

Endurance Test

You can safely conduct an endurance test on a developing aircraft before flight.

•

  Motor check

• 　　Is the motor current consumption appropriate?

•

  Propeller check

• 　Is the propeller undamaged?

•

  Battery check

• 　　Is the battery consumption appropriate?

•

  Vibration check

• 　　Is the frame free from excessive vibration?

•

  Control check

• 　　Is horizontal control functioning properly? Does it respond correctly to tilting?

•

  Endurance Verification

• 　　Does it operate normally during long-duration operation?

•

→Helps reduce inspection costs

Control Tuning

You can safely perform control tuning on a developing aircraft before flight.

•

  Data Analysis Available

• 　　Data analysis can be performed based on encoder information. The included application supports CSV output and data processing in MATLAB/Simulink.

•

  Safe Adjustment Environment

• 　　Since the frame is fixed in place, it remains safe even if unstable control behavior occurs.

•

→Significantly reduces the risk during control tuning

Failsafe Verification (Stabilize)

You can safely conduct failsafe testing.

•
  Attitude Control Verification During Motor/Propeller Stop

•

  Operation Verification During Low Battery Conditions

•

  Other Abnormal Condition Tests

•

→Enables safe and reliable failsafe verification

Education & Training

Drone beginners can use a real drone to practice operation before their first flight.

•

  Professional-Level Operation Practice Before First Flight

• 　　You can learn the precise control inputs required for flight.

•

  Realistic Understanding of Aircraft Behavior

• 　　By observing differences from a simulator, you can better understand how the aircraft responds to control inputs.

•

  Safe, Low-Risk Learning Environment

• 　　With minimal risk of crashes, you can practice repeatedly as needed.

•

→ Enables safe and efficient drone operation training

Pre-Shipment Inspection (Integrated Testing)

Comprehensive testing including electrical and mechanical system integrity, durability and stability verification, GPS position control validation, failure mode testing, and data recording and analysis. Wide range of inspection items handled in one go.

•

  Electrical and mechanical system integrity verification
•

  Durability and stability verification

•

  GPS position control validation

•

  Failure mode testing

•

  Data recording and analysis

•

→Pre-shipment inspection can be conducted safely, at low cost, with traceability ensured

GPS Position Flight Realization

ASTOM's GPS feedback functionality enables position flight testing on the test bench. More realistic operational verification becomes possible.

•

  GPS signal simulation

•

  Position control algorithm validation

•

  Navigation accuracy evaluation

•

→Realistic operational verification can be achieved

Simulator Integration

Digital twin simulator integration unifies virtual environment and physical testing. Dramatically improves development efficiency.

•

  SITL (Software In The Loop) support

•

  Simulation result validation

•

  Physical data feedback

•

→ Development efficiency can be significantly improved

Advanced Verification and Development

Supports complex algorithm verification, new sensor testing, and custom equipment integration for advanced development requirements.。

•

  Custom algorithm verification

•

  New sensor integration testing

•

  Complex control logic measurement

•

→ Various development requirements can be addressed
